Digital Signal Processing

DFT/FFT

DFT is a matrix multiplication, the naive implementation is $O(N^2)$. FFT is a much faster multiplication in $O(N \log N)$, which makes it practical.

$$X_k = \sum_{n=0}^{N-1} x_n e^{-j 2 \pi k n / N}$$

• Wikipedia
• Wikibooks
• DFT matrix
• Smith's Guide to DSP, ch.8 by Steven W. Smith
• Mathematics of the Discrete Fourier Transform by Julius O. Smith
• The Discrete Fourier Transform by Ivan W. Selenick and Gerald Schuller. From chapter 2 of The Transform and Data Compression Handbook ed. by Kamisetty Ramam Rao and Patrick C. Yip
• The Discrete Fourier Transform by prof. Jeffrey A. Fessler from EECS 451, Digital Signal Processing and Analysis
• The Discrete Fourier Transform by prof. Stephen Roberts from Signal Processing & Filter Design

Digital Sinusoid Generators

• DTMF Tone Generation and Detection by Gunter Schmer

Second-order digital resonator in Python:

fs = 8000  # sampling frequency
fo = 700   # output frequency
A = 1.0    # amplitude
w = 2*pi*fo/fs    # angular frequency of fo
c = 2.0 * cos(w)  # coefficient, controls the frequency, 1.70528
x = -A * sin(w)   # initial value, controls the amplitude and phase, -0.522498
y = 0.0
for ever:
    emit(x)
    x, y = c*x - y, x

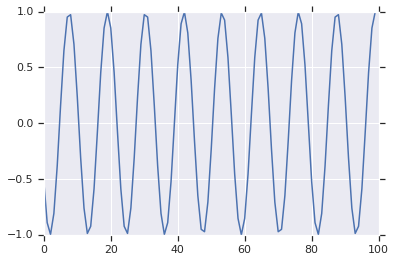

First 100 data points:

N = 4096
f = fft(signal[:N])
p = np.argmax(abs(f)[:N//2])
print(p*fs/N) => 699.21895 Hz

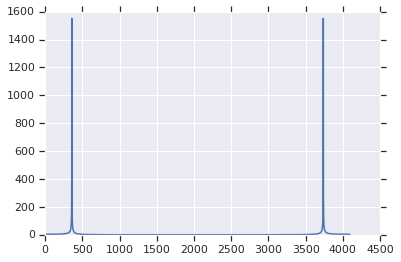

FFT:

• Digital Waveguide Oscillator by Julius O. Smith
• Effect Design Part 3 Oscillators: Sinusoidal and Pseudonoise by Jon Dattorro
• A sine generation algorithm for VLSI applications by John W. Gordon and Julius O. Smith
• The Second-Order Digital Waveguide Oscillator by Julius O. Smith and Perry R. Cook
• AN-263 Sine Wave Generation Techniques
• 5 ways to generate a sine wave
