Shuo Chen's notes on Linux TCP/IP stack

Source of this site: https://github.com/chenshuo/tcpip-study

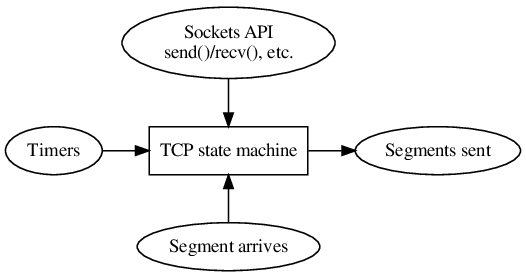

The TCP state machine has three inputs: Sockets API, Timers, and Data arrives.

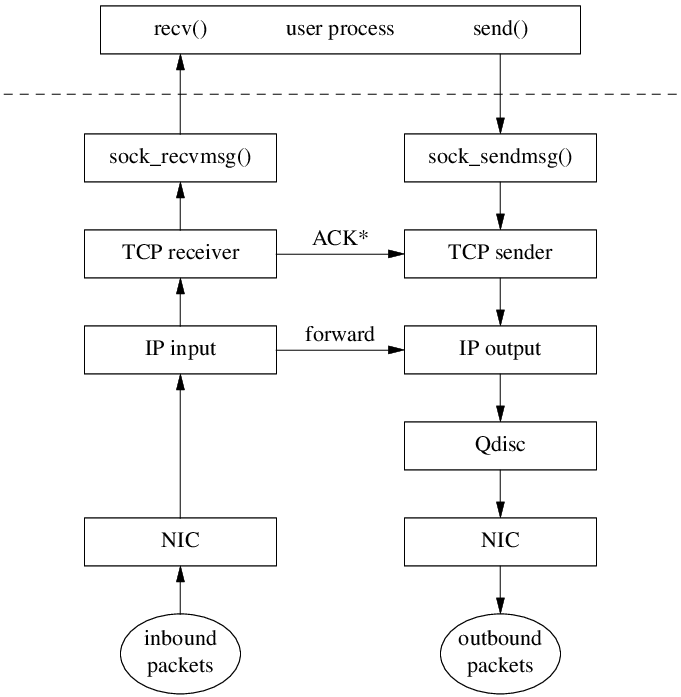

Overview of packet flow:

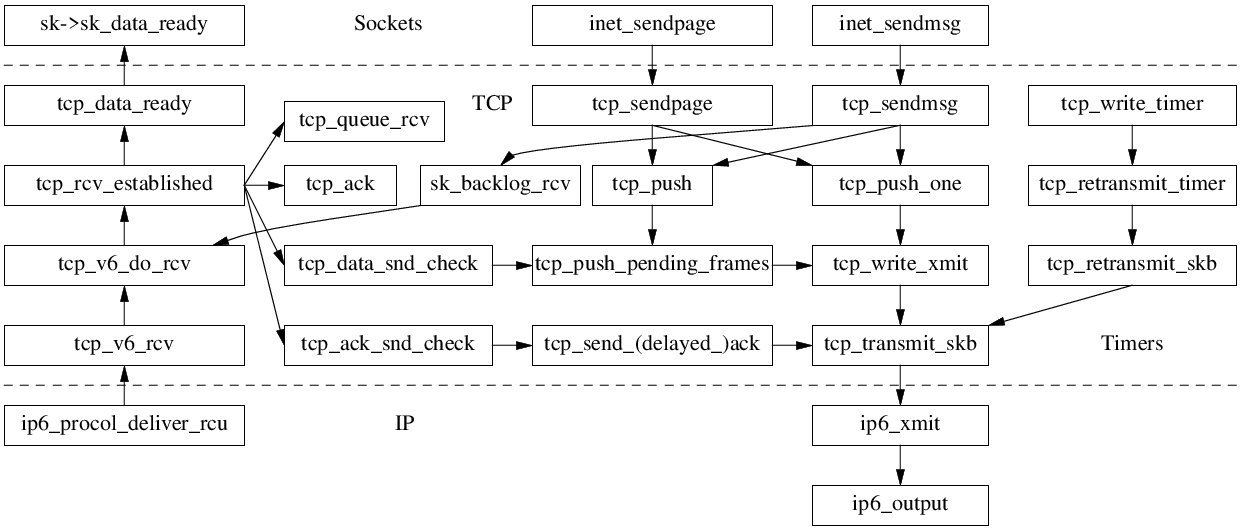

A closer look at Linux networking datapath callgraph:

TCP/IP Reference

TCP/IP Illustrated (vol. 1): The Protocols, 2nd ed. by Kevin R. Fall and W. Richard Stevens, 2011-11.

• RFC793 Transmission Control Protocol, Jon Postel, 1981-09.
• RFC813 Window and Acknowledgement Strategy in TCP, David D. Clark, 1982-07.
• RFC1122 Requirements for Internet Hosts --- Communication Layers, 1989-10
• RFC5681 TCP Congestion Control, 2009-09
• RFC6093 On the Implementation of the TCP Urgent Mechanism, 2011-01, which recommends against the use of urgent mechanism.
• RFC6582 The NewReno Modification to TCP's Fast Recovery Algorithm, 2012-04
• RFC7323 TCP Extensions for High Performance, obsoletes RFC1323
• RFC7413 TCP Fast Open
• RFC7414 TCP Roadmap
• RFC8289 Controlled Delay Active Queue Management
• RFC8312 CC-CUBIC, Linux's default congestion control algorithm since 2.6.19, replaced BIC (default from 2.6.8 till 2.6.18.x). FreeBSD will use CUBIC as the new default, replacing NewReno.
• RFC8985 RACK-TLP Loss Detection Algorithm for TCP
• RFC9293 Transmission Control Protocol (TCP), obsoletes RFC793 after 40+ yrs, 2022-08.
• Many others in 'Links' page.

TCP/IP Implementations

AFAIK, there are four independent mainstream TCP/IP stacks: BSD, Linux, Windows, and Solaris (Mentat TCP and archived page. I guess BSD stack is also used on macOS and iOS, Android uses Linux stack. So I guess most of traffic on Internet happens between the first three TCP/IP stacks.

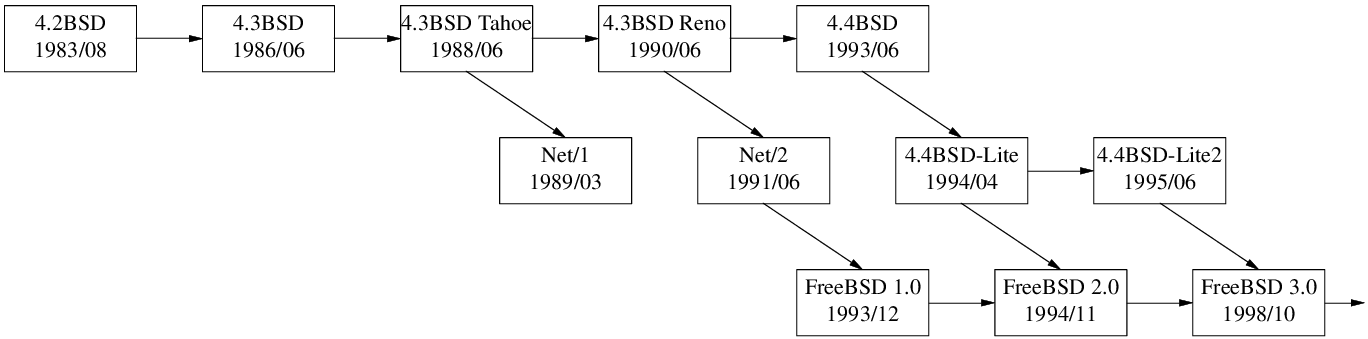

• BSD family, BSD family tree

  • 4.2BSD was the first widely available TCP/IP implementation.
  • 4.4BSD-Lite is convered in great detail in TCP/IP Illustrated (vol. 2): The Implementation by Gary R. Wright and W. Richard Stevens, 1995.
  • FreeBSD, http://caia.swin.edu.au/urp/newtcp/
  • http://www.f-stack.org/ User space TCP/IP stack from FreeBSD 11.0, https://github.com/pkelsey/libuinet.

• Linux, some early history

  • First in 0.98 by Ross Biro, net/tcp, 1992-09-29
  • Switched to a new one (NET2) by Fred van Kempen in 0.99.10, net/inet, 1993-06-07
  • NET3 by Swansea University Computer Society (Alan Cox) took place in 1.1.4.
  • In 1.2.10 -> 1.3.0, moved from net/inet to net/ipv4. Last update to net/inet was in 1.2.13
  • In 2.1.8, added net/ipv6
  • In 2.2.0pre5, renamed to NET4, early 1999.
  • https://blog.cloudflare.com/why-we-use-the-linux-kernels-tcp-stack/
  • https://jvns.ca/blog/2016/06/30/why-do-we-use-the-linux-kernels-tcp-stack/

• lwIP / uIP / picoTCP

  • For microcontrollers, small footprint
• gvisor / netstack
  • User space, in Golang
• Others, mostly user space
  • https://shader.kaist.edu/mtcp/
  • http://seastar.io/networking/
• Educational OSes
  • Minix 2.x has its own TCP/IP stack, 3.x uses lwIP instead.
  • Xinu code, covered in Internetworking With TCP/IP Volume II: Design, Implementation, and Internals, 3rd ed. by Douglas E. Comer and David L. Stevens, 1999.
• Toy implementations
  • https://github.com/saminiir/level-ip
  • https://github.com/chobits/tapip
  • Stanford CS144 https://cs144.github.io

Tools

• packetdrill is a unittest for entire TCP/IP stack.
• neper is a performance testing tool to generate workloads.

Recent changes

Recent changes that I am aware of.

• EDT netdev 0x12 Keynote: Evolving from AFAP: Teaching NICs about time by Van Jacobson, slides and video.
  • Linux 4.20 switched to Early Departure Time model in 2018/09, and refined in 2018/10.
