Evolution of File Descriptor Table in Linux Kernel

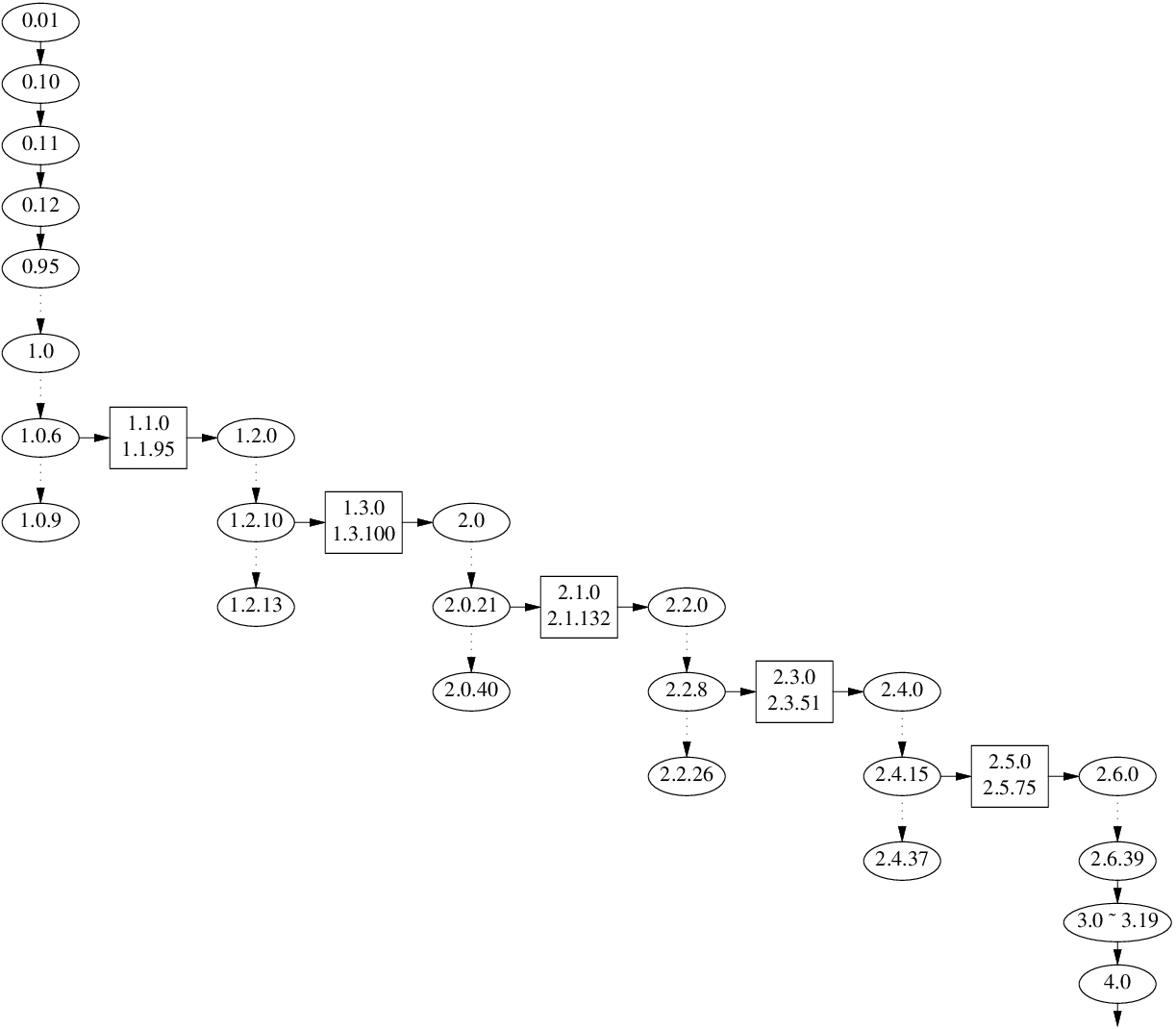

releases

0.01 to 1.1.10

filp is a fixed length array in struct task_struct.

//
// linux-0.99
//

//
// include/linux/sched.h
//

struct task_struct {
        // ...
        struct file * filp[NR_OPEN];
        fd_set close_on_exec;
        // ...
};

//
// include/linux/fs.h
//

struct file {
        mode_t f_mode;
        dev_t  f_rdev;
        off_t  f_pos;            // each opened file has its own offset
        unsigned short f_flags;
        unsigned short f_count;
        unsigned short f_reada;
        struct inode * f_inode;
        struct file_operations * f_op;
};

struct inode {
        dev_t           i_dev;
        unsigned long   i_ino;
        umode_t         i_mode;
        nlink_t         i_nlink;
        uid_t           i_uid;
        gid_t           i_gid;
        dev_t           i_rdev;
        off_t           i_size;  // each disk file has one size
        time_t          i_atime;
        time_t          i_mtime;
        time_t          i_ctime;
        unsigned long   i_blksize;
        unsigned long   i_blocks;
        struct inode_operations * i_op;
        struct super_block * i_sb;
        // ...
};

//
// fs/file_table.c
//

struct file file_table[NR_FILE];

struct file * get_empty_filp(void)
{
        int i;
        struct file * f = file_table+0;

        for (i = 0; i++ < NR_FILE; f++)
                if (!f->f_count) {
                        memset(f,0,sizeof(*f));
                        f->f_count = 1;
                        return f;
                }
        return NULL;
}

//
// fs/inode.c
//

static struct inode inode_table[NR_INODE];

See https://en.wikipedia.org/wiki/File_descriptor for per-process file descriptor table, system-wide file table and inode table.

Relation of three tables:

  1. Thie simplest case is one process opens one disk file (e.g. open("/var/log/access.log", O_WRONLY)), it uses one entry from each table.
  2. Then the process does a dup(), the old and new file descriptors may be used interchangeably. Two file descriptors refer to the same open file, and thus share file offset and file status flags. However, the two file descriptors do not share file descriptor flags (close_on_exec).
  3. Later, the process does a open("/var/log/access.log", O_RDONLY), a new file descriptor and new file description is created, and pointing to the same inode entry. Therefore, it sees the same file size as the first two fds, but different offset.

Sizes of those three tables in early Linux

  • NR_OPEN: How many files can a process open?
  • NR_FILE: How many files can all processes open?
  • NR_INODE: How many disk files can all processes open?
Version Date NR_OPEN NR_FILE NR_INODE
0.01 1991-09-17 20 64 32
0.12 1992-01-15 20 64 64
0.95 1992-03-08 20 64 128
0.96a.3 1992-05-22 32 64 128
0.96c.1 1992-07-04 32 128 128
0.97 1992-08-01 32 128 128
0.98.4 1992-11-09 256 128 128
0.99.10 1993-06-07 256 1024 2048



Note 1: file_table and inode_table were made dynamic in 0.99.10.

    [PATCH] Linux-0.99.10 (June 7, 1993)

    The "struct file" file_table is made dynamic, instaed of a static
    allocation.  For the first time you can have _lots_ of files open.

diff --git a/fs/file_table.c b/fs/file_table.c
--- a/fs/file_table.c
+++ b/fs/file_table.c

-struct file file_table[NR_FILE];
+struct file * first_file;
+int nr_files = 0;

Note 2: ext2 file system was added 0.99.7.

1.1.11 to 1.3.21

Split into struct files_struct. 1.1.11 was released in 1995/05.

// include/linux/sched.h of linux-1.3.21

struct files_struct {
        int count;
        fd_set close_on_exec;
        struct file * fd[NR_OPEN];
};

struct task_struct {
        // ...

/* filesystem information */
        struct fs_struct fs[1];
/* open file information */
        struct files_struct files[1];
/* memory management info */
        struct mm_struct mm[1];

        // ...

};

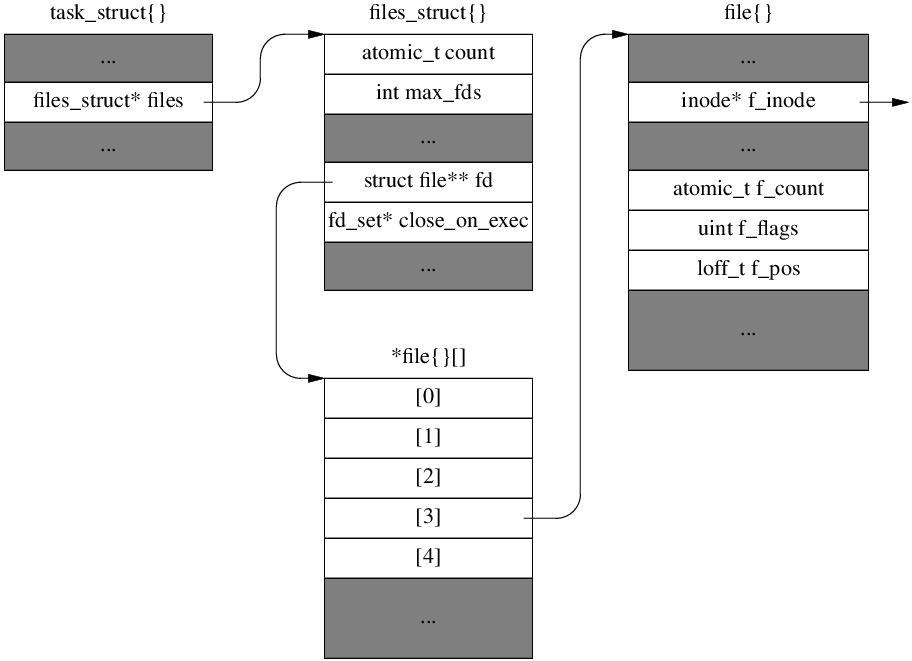

1.3.22 to 2.1.89

Change files from a struct[1] to a pointer, so it can be shared by threads within a process. 1.3.22 was released in 1995/09. LinuxThreads needs 2.0 kernel, which was released in 1996/07.

// include/linux/sched.h of linux-2.0.2

/* Open file table structure */
struct files_struct {
        int count;
        fd_set close_on_exec;
        fd_set open_fds;
        struct file * fd[NR_OPEN];
};

struct task_struct {
        // ...

 /* filesystem information */
-       struct fs_struct fs[1];
+       struct fs_struct *fs;
 /* open file information */
-       struct files_struct files[1];
+       struct files_struct *files;
 /* memory management info */
-       struct mm_struct mm[1];
+       struct mm_struct *mm;

        // ...
};

2.1.90 to 2.6.13

Change fixed-length array fd to dynamic array. 2.2.0 was released in 1999/01.

// include/linux/sched.h of linux-2.2.0

/*
 * Open file table structure
 */
struct files_struct {
        atomic_t count;
+       int max_fds;
+       struct file ** fd;      /* current fd array */
        fd_set close_on_exec;   // changed to fd_set* in 2.2.12
        fd_set open_fds;
-       struct file * fd[NR_OPEN];
};

struct task_struct {
        // ...

/* open file information */
        struct files_struct *files;

        // ...

};

fdt

2.6.14 to now (4.15.7)

Introduce struct fdtable for RCU. 2.6.15 was released in 2006/01, Ubuntu 6.04 LTS and Debian 4 ship it.

// include/linux/fdtable.h of linux-2.6.37

struct fdtable {
        unsigned int max_fds;
        struct file __rcu **fd;      /* current fd array */
        fd_set *close_on_exec;
        fd_set *open_fds;
        struct rcu_head rcu;
        struct fdtable *next;
};

/*
 * Open file table structure
 */
struct files_struct {
  /*
   * read mostly part
   */
        atomic_t count;
        struct fdtable __rcu *fdt;
        struct fdtable fdtab;
  /*
   * written part on a separate cache line in SMP
   */
        spinlock_t file_lock ____cacheline_aligned_in_smp;
        int next_fd;
        struct embedded_fd_set close_on_exec_init;
        struct embedded_fd_set open_fds_init;
        struct file __rcu * fd_array[NR_OPEN_DEFAULT];
};

struct task_struct {
        // ...

/* open file information */
        struct files_struct *files;

        // ...

};

struct file itself.

// include/linux/fs.h of linux-4.9

struct file {
        union {
                struct llist_node       fu_llist;
                struct rcu_head         fu_rcuhead;
        } f_u;
        struct path             f_path;
        struct inode            *f_inode;  /* cached value */ // added back in 3.9, same as f_path.dentry->d_inode
        const struct file_operations    *f_op;

        /*
         * Protects f_ep_links, f_flags.
         * Must not be taken from IRQ context.
         */
        spinlock_t              f_lock;
        atomic_long_t           f_count;
        unsigned int            f_flags;
        fmode_t                 f_mode;
        struct mutex            f_pos_lock;  // Fixed in 3.14
        loff_t                  f_pos;
        struct fown_struct      f_owner;
        const struct cred       *f_cred;
        struct file_ra_state    f_ra;

        u64                     f_version;
#ifdef CONFIG_SECURITY
        void                    *f_security;
#endif
        /* needed for tty driver, and maybe others */
        void                    *private_data;

#ifdef CONFIG_EPOLL
        /* Used by fs/eventpoll.c to link all the hooks to this file */
        struct list_head        f_ep_links;
        struct list_head        f_tfile_llink;
#endif /* #ifdef CONFIG_EPOLL */
        struct address_space    *f_mapping;
} __attribute__((aligned(4)));  /* lest something weird decides that 2 is OK */

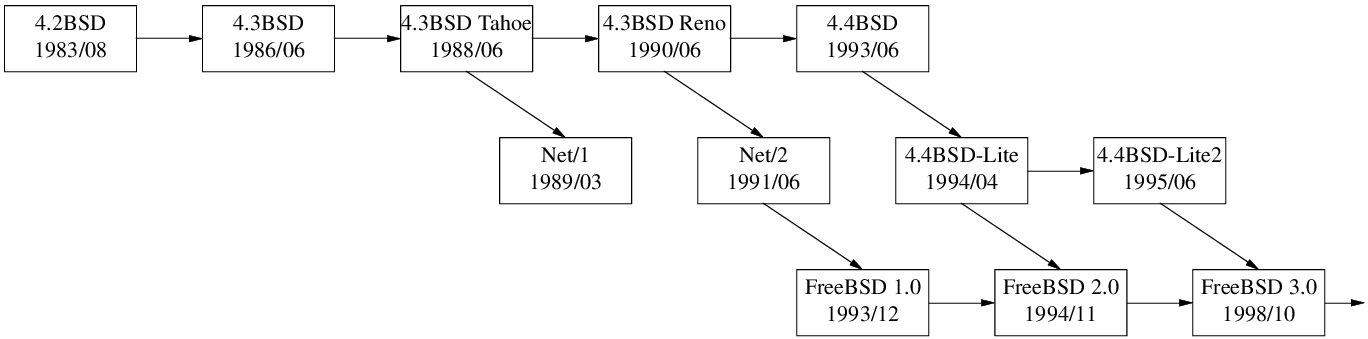

FreeBSD up to 9.3

bsd

4.3BSD-Reno and older BSDes use fixed-length array of struct file*.

struct user {
        // ...
        struct  file *u_ofile[NOFILE];  /* file structures for open files */
        // ...
};

From BSD Net/2 up to FreeBSD 9.3 use a similiar dynamic array data structure of Linux 2.0 (see diagram above.), where proc == task_struct, filedesc == files_struct, file == file.

// sys/proc.h
/*
 * Process structure.
 */
struct proc {
        // ...
        struct filedesc *p_fd;          /* (b) Open files. */
        // ...
};

// sys/filedesc.h
struct filedesc {
        struct  file **fd_ofiles;       /* file structures for open files */
        char    *fd_ofileflags;         /* per-process open file flags */
        struct  vnode *fd_cdir;         /* current directory */
        struct  vnode *fd_rdir;         /* root directory */
        struct  vnode *fd_jdir;         /* jail root directory */
        int     fd_nfiles;              /* number of open files allocated */
        NDSLOTTYPE *fd_map;             /* bitmap of free fds */
        int     fd_lastfile;            /* high-water mark of fd_ofiles */
        int     fd_freefile;            /* approx. next free file */
        u_short fd_cmask;               /* mask for file creation */
        u_short fd_refcnt;              /* thread reference count */
        u_short fd_holdcnt;             /* hold count on structure + mutex */
        struct  sx fd_sx;               /* protects members of this struct */
        struct  kqlist fd_kqlist;       /* list of kqueues on this filedesc */
        int     fd_holdleaderscount;    /* block fdfree() for shared close() */
        int     fd_holdleaderswakeup;   /* fdfree() needs wakeup */
};

// sys/file.h
struct file {
        void            *f_data;        /* file descriptor specific data */
        struct fileops  *f_ops;         /* File operations */
        struct ucred    *f_cred;        /* associated credentials. */
        struct vnode    *f_vnode;       /* NULL or applicable vnode */
        short           f_type;         /* descriptor type */
        short           f_vnread_flags; /* (f) Sleep lock for f_offset */
        volatile u_int  f_flag;         /* see fcntl.h */
        volatile u_int  f_count;        /* reference count */
        // ...
        off_t           f_offset;
        // ...
};
